Fresh Air Blower Control Module -J126-

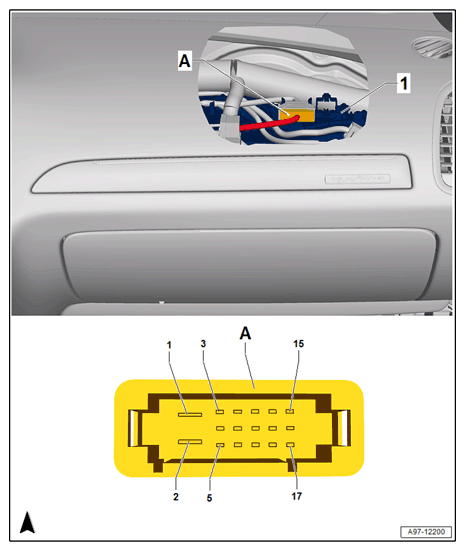

Component Location
Behind Glove Compartment.
- 1 - Fresh Air Blower Control Module -J126-
- A - 17-Pin Connector -T17K-, Black
Pin Arrangements Fresh Air Blower Control Module -J126-
| - T17k - (A) | Designation |
|---|---|
| 1 | Terminal 30 |
| 2 | Terminal 31 |
| 3 | Terminal 30 |
| 4 | |
| 5 | |
| 6 | Climatronic Control Module -J255- |
| 7 | Right Temperature Flap Potentiometer/Actuator -G221- |
| 8 | Indirect Ventilation Flap Motor Position Sensor -G330- |
| 9 | |
| 10 | Right Temperature Flap Motor -V159- |
| 11 | Right Temperature Flap Motor -V159- |
| 12 | Climatronic Control Module -J255- |
| 13 | Climatronic Control Module -J255- |
| 14 | Climatronic Control Module -J255- |
| 15 | |
| 16 | |
| 17 |
