Engine Sound Generator Control Module Connector End View (J943, T8ax)

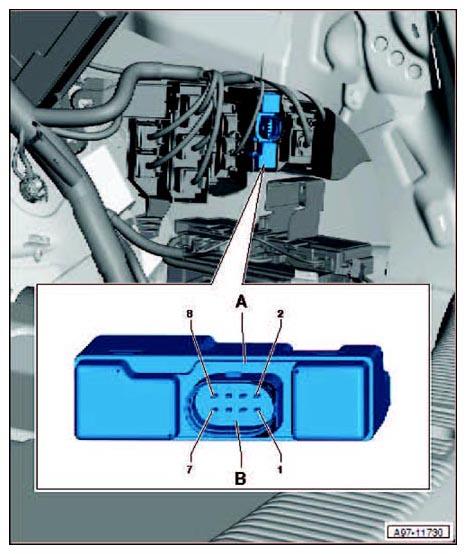

Fig 1: Engine Sound Generator Control Module Connector End View (J943, T8ax)
G10360114Courtesy of AUDI OF AMERICA, LLC
A Engine Sound Generator Control Module -J943-
B 8-Pin Connector -T8ax-, black
