Vehicle Positioning System Interface Control Module Connector End View (J843, T12o)

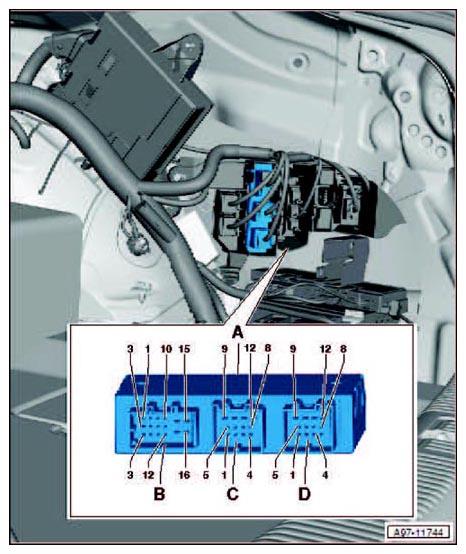

Fig 1: Vehicle Positioning System Interface Control Module Connector End View (J843, T12o)
G10360113Courtesy of AUDI OF AMERICA, LLC
A Vehicle positioning system interface control module -J843-
B Not used
C 12-Pin Connector -T12o-, brown
D Not used
