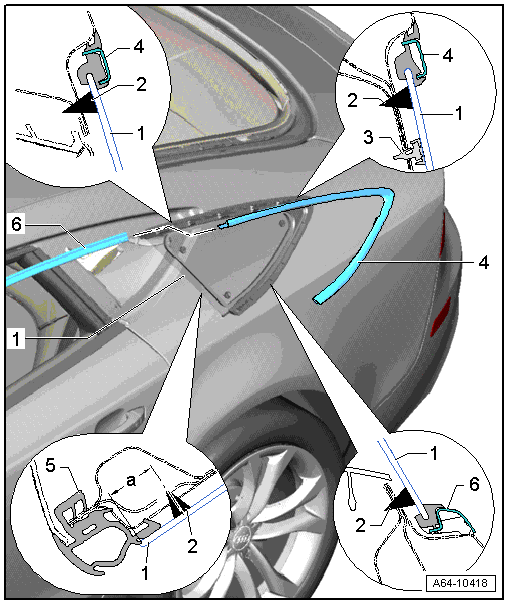

Overview - Rear Side Window
Courtesy of AUDI OF AMERICA, LLC
- Side Window
- The roof trim molding is removed. Refer to ROOF TRIM MOLDING, REMOVING AND INSTALLING
.
- Remove the door seal on the >>C-Pillar<< in the side window area.
- Remove the window. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- When installing a new window, first press it into the >>D-pillar<< with the securing pin and then insert the whole thing into the window opening and let the securing pin lock into the >>C-pillar<<.
- If a window was removed and is being installed again, then secure the window to the inside the window opening with tape.
- Adhesive Bead
- Securing Pin
- No replacement part
- Is cut through when removing window.
- Side Window Trim Molding
- Door Seal
- Remove near the side window
- Roof Trim Molding
