Transmission Identification
Allocation, refer to TRANSMISSION/ENGINE ALLOCATION .

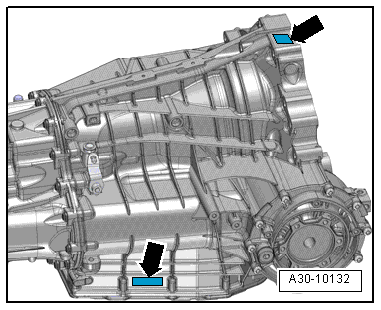

The following details can be found on the transmission housing -arrows- :
| LHF | = | Transmission Code |
| D04 | = | Manufacturer key |
| 0026 | = | serial number |
| K100808 | = | Factory: |
|
||
| Build date: | ||
|
NOTE:
The transmission code is also listed on the vehicle data plate.
Vehicle data label location, refer to => 411.
