Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing

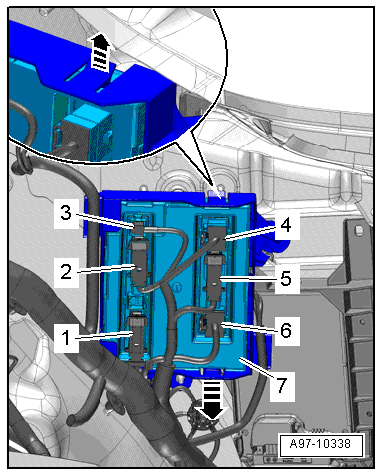

Fig 1: Removing Comfort System Central Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Open the luggage compartment right side trim.

-- Release the clips -arrows- and remove the Comfort System Central Control Module -J393- -item 7- from the retaining frame.

-- Carefully disconnect the connectors -4- and -6- and antenna connector -3-.

-- Disconnect the connectors -1, 2 and 5-.

-- To disconnect the connector, press the tab -1-, turn the retaining bracket in direction of -arrow- and remove the connector.

Fig 2: Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Comfort System Central Control Module -J393-.
