Rearview Camera System Control Module -J772-, REMOVING AND INSTALLING: Notes

The Rearview Camera System Control Module -J772- -1- is located behind the right luggage compartment side trim panel.

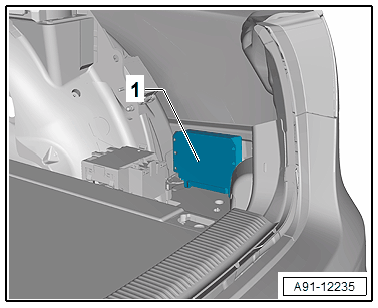

Fig 1: Locating Rearview Camera System Control Module

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If replacing the control module, select the "Replace Control Module " function see Vehicle Diagnostic Tester.

-- Turn off the ignition and all electrical consumers and remove the ignition key.
