Electrical Components Locations & Connector End Views -- (A3)
›
Comp. LOC. Vehicle Cabin Modules
›
CLIMATRONIC Control Module -J255-
›

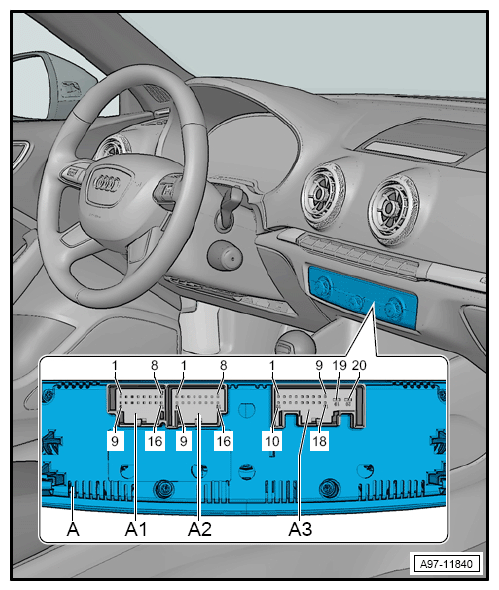

CLIMATRONIC Control Module -J255- Connector Views
CLIMATRONIC Control Module -J255- Connector Views
16-Pin Connector -T16D-/16-Pin Connector -T16C-/20-Pin Connector -T20B-
A1
- 16-Pin Connector -T16D-
A2
- 16-Pin Connector -T16C-
A3
- 20-Pin Connector -T20B-, Black
Courtesy of AUDI OF AMERICA, LLC
