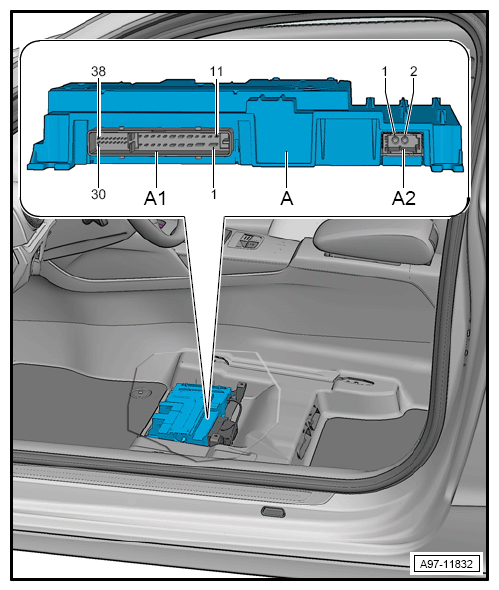

Digital Sound System Control Module -J525- Connector Views

  1. 38-Pin Connector
  2. A1  - 38-Pin Connector, Black
  3. A2  - Double Connector, Black
G12759738Courtesy of AUDI OF AMERICA, LLC
