Parking Aid Control Module -J446-/Parallel Parking Assistance Control Module -J791- Connector Views

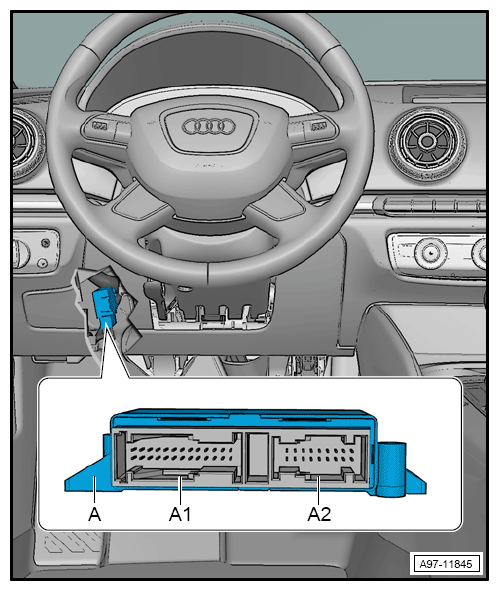

  1. 26-Pin Connector -T26C-/18-Pin Connector -T18A-
  2. A1  - 26-Pin Connector -T26C-, Black
  3. A2  - 18-Pin Connector -T18A-, Black
G12759782Courtesy of AUDI OF AMERICA, LLC
