Electrical Components Locations & Connector End Views -- (A3)
›
Comp. LOC. Vehicle Front Modules
›
A/C Compressor Control Module J842
›

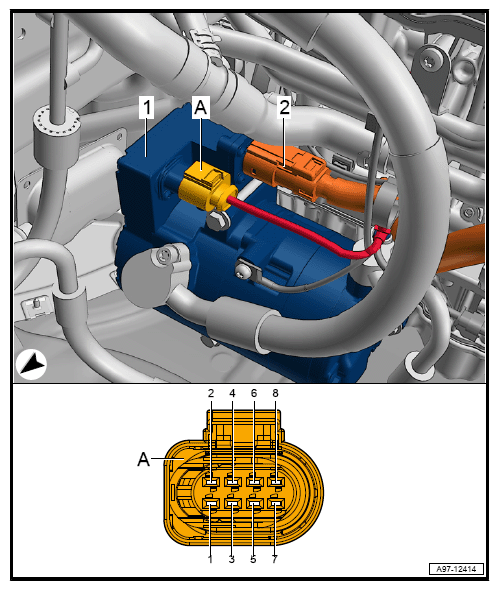

A/C Compressor Control Module -J842- Connector View
A/C Compressor Control Module -J842- Connector View
8-Pin Connector -T8S-
A
- 8-Pin Connector -T8S-
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
