Electrical Components Locations & Connector End Views -- (A3)
›
Comp. LOC. Vehicle Front Modules
›
Abs Control Module J104
›

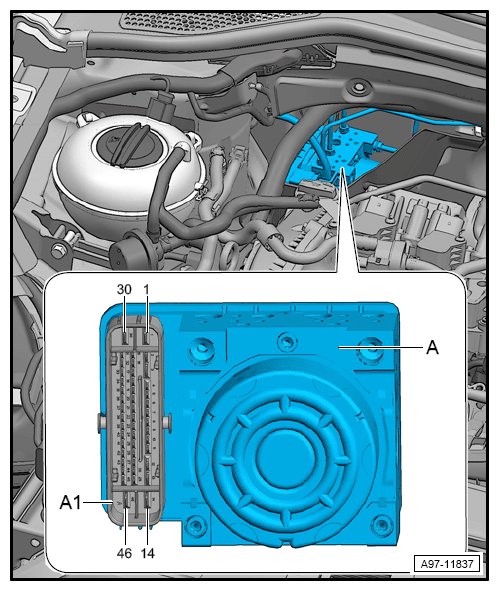

Abs Control Module -J104- Connector View
Abs Control Module -J104- Connector View
46-Pin Connector -T46A-
A1
- 46-Pin Connector -T46A-, Black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
