Structure-Borne Sound Control Module J869
›

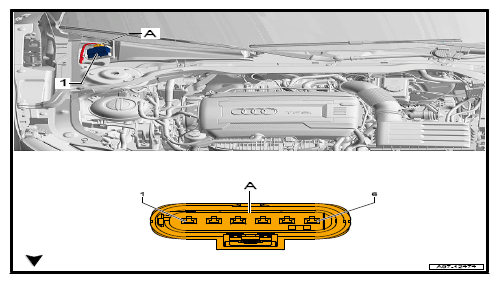

Structure-Borne Sound Control Module -J869-, Location
Structure-Borne Sound Control Module -J869-, Location
In Plenum Chamber.
1
- Structure-Borne Sound Control Module -J869-
A
- 6-Pin Connector -T6AD-, Black
