A/C Control Module -J301- Connector Views

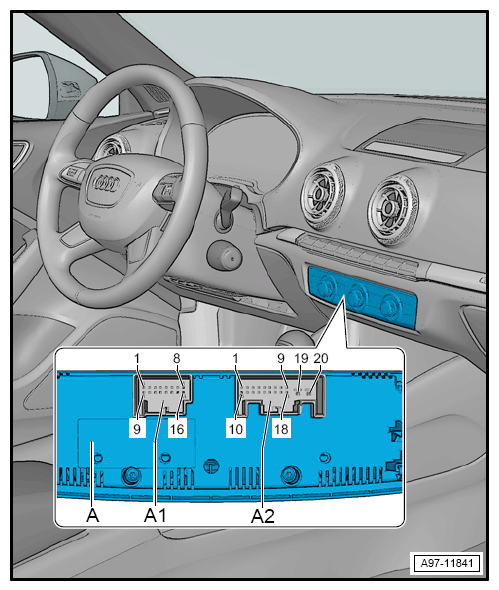

  1. 16-Pin Connector -T16O-/20-Pin Connector -T20F-
  2. A1  - 16-Pin Connector -T16O-
  3. A2  - 20-Pin Connector -T20F-, Black
G12759772Courtesy of AUDI OF AMERICA, LLC
