Driver Assistance Systems Front Camera -R242-
›

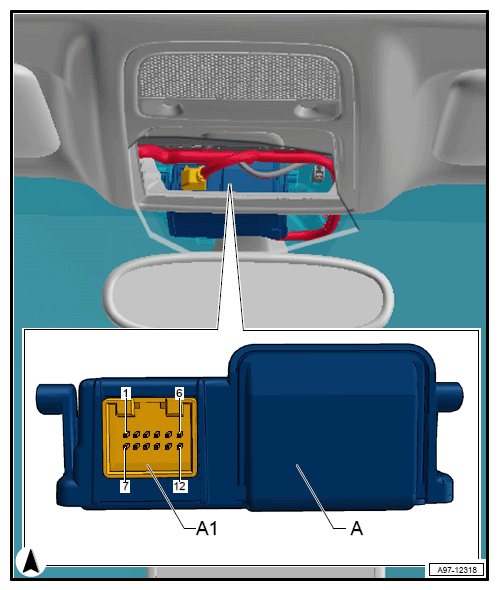

Driver Assistance Systems Front Camera -R242- Location
Driver Assistance Systems Front Camera -R242- Location
Near Interior Mirror.
A
- Driver Assistance Systems Front Camera -R242-
A1
- 12-Pin Connector -T12AC-, Black
Courtesy of AUDI OF AMERICA, LLC
