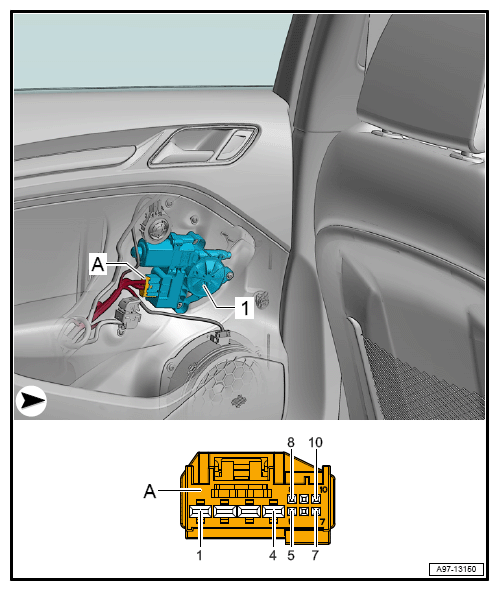

Rear Window Control Module, Driver's Side-J1016-/Front Passenger Side Rear Window Control Module -J1017-, Connector Views

  1. 10-Pin Connector -T10AH-/10-Pin Connector -T10AI-
  2. A  - 10-Pin Connector -T10AH-, Black
  3. A  - 10-Pin Connector -T10AI-, Black
G12759873Courtesy of AUDI OF AMERICA, LLC
