Power Steering Control Module -J500- Connector View

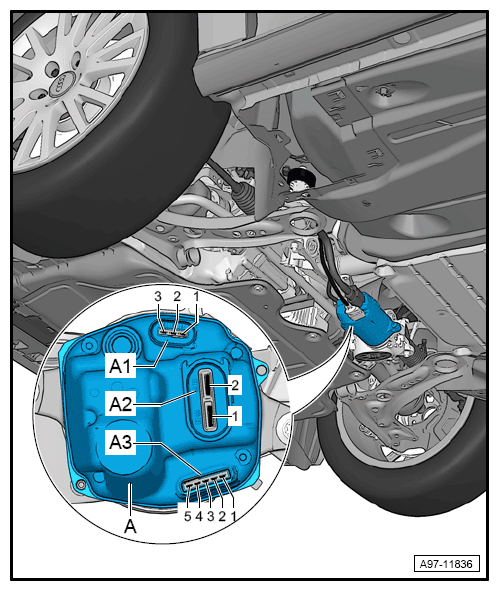

  1. 3-Pin Connector -T3Z-/Double Connector -T2AG-/5-Pin Connector -T5F-
  2. A1  - 3-Pin Connector -T3Z-, Black
  3. A2  - Double Connector -T2AG-, Black
  4. A3  - 5-Pin Connector -T5F-
G12759694Courtesy of AUDI OF AMERICA, LLC
