Access/Start Authorization Control Module -J518- Connector Views, From July 2018
Access/Start Authorization Control Module -J518- Connector Views, From July 2018

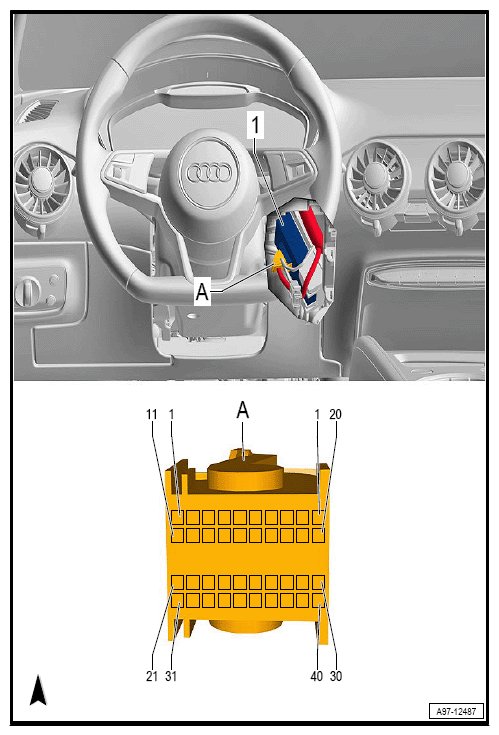

40-Pin Connector -T40A-
A
- 40-Pin Connector -T40A-, Black
Courtesy of AUDI OF AMERICA, LLC
