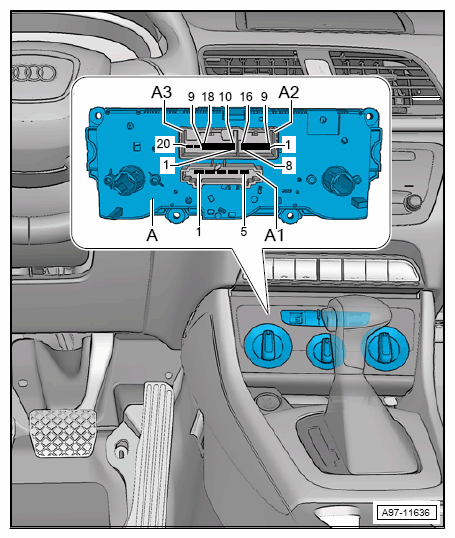

A/C Control Module -J301- Connector Views
5-PIN CONNECTOR -T5E-/16-PIN CONNECTOR -T16O-/20-PIN CONNECTOR -T20B-
- A1
- 5-Pin Connector -T5E-, Black
- A2
- 16-Pin Connector -T16O-, Black
- A3
- 20-Pin Connector -T20B-, Black
 Courtesy of AUDI OF AMERICA, LLC
|
