Comp. LOC. Vehicle Cabin Modules
›
Access/Start Authorization Control Module J518
›

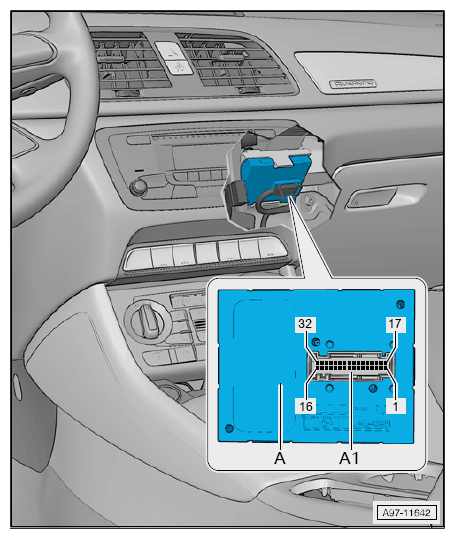

Access/Start Authorization Control Module -J518- Connector View
Access/Start Authorization Control Module -J518- Connector View
32-PIN CONNECTOR -T32A-
A1
- 32-Pin Connector -T32A-, Blue
Courtesy of AUDI OF AMERICA, LLC
