Directional Stabilization Assistance Control Module J759
›

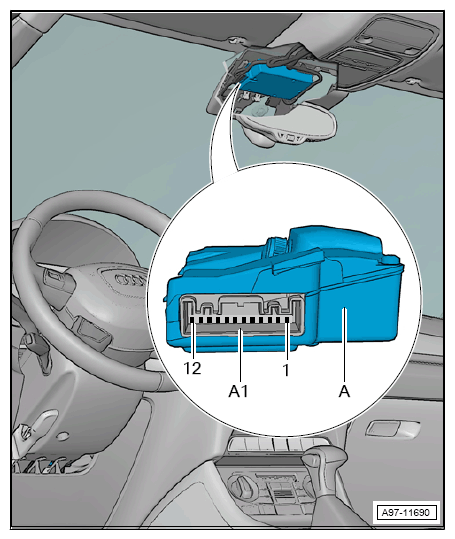

Directional Stabilization Assistance Control Module -J759- Connector Views
Directional Stabilization Assistance Control Module -J759- Connector Views
12-PIN CONNECTOR -T12L-
A1
- 12-Pin Connector -T12L-, Black
Courtesy of AUDI OF AMERICA, LLC
