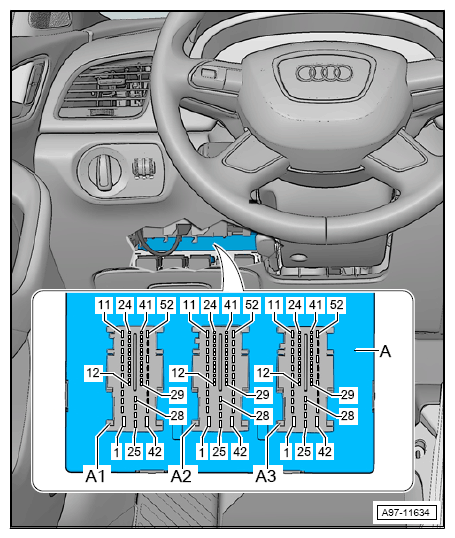

Vehicle Electrical System Control Module -J519- Connector Views
52-PIN CONNECTOR -T52A-/52-PIN CONNECTOR -T52B-/52-PIN CONNECTOR -T52C-
- A1
- 52-Pin Connector -T52A-, Black
- A2
- 52-Pin Connector -T52B-, Natural
- A3
- 52-Pin Connector -T52C-, Brown
 Courtesy of AUDI OF AMERICA, LLC
|
