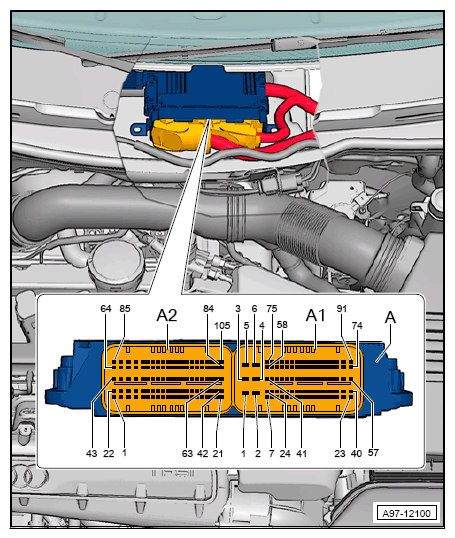

Engine Control Module (ECM) -J623-, Location, (196-Pin)

  1. A  - Engine Control Module (ECM) -J623-
  2. A1  - 91-Pin Connector -T91-, Black
  3. A2  - 105-Pin Connector -T105-, Black
G12775324Courtesy of AUDI OF AMERICA, LLC
