Electrical Components Locations & Connector End Views -- Q3
›
Comp. LOC. Vehicle Front Modules
›
NOX Sensor Control Module J583
›

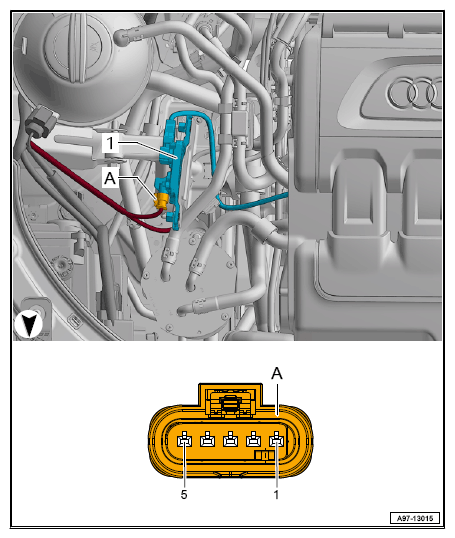

NOX Sensor Control Module -J583-, Connector Views
NOX Sensor Control Module -J583-, Connector Views
5-PIN CONNECTOR -T5O-
A
- 5-Pin Connector -T5O-, Black
Courtesy of AUDI OF AMERICA, LLC
