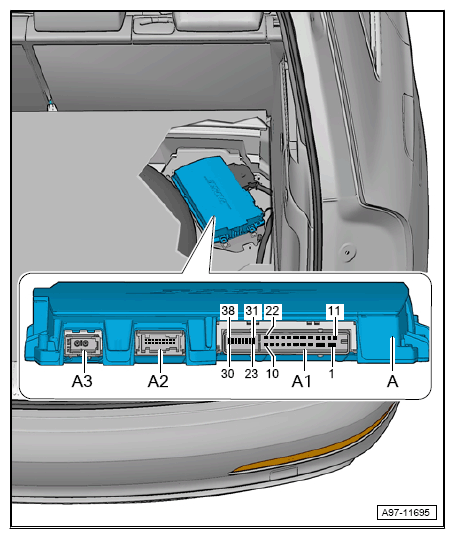

Digital Sound System Control Module -J525-, Connector View

38-PIN CONNECTOR -T38-/DOUBLE CONNECTOR -T2DK-

1. A1  - 38-Pin Connector -T38-, Black
2. A2  - Not Used
3. A3  - Double Connector -T2Dk-, Black

Courtesy of AUDI OF AMERICA, LLC
