Parking Aid Control Module -J446-/Parallel Parking Assistance Control Module -J791-, Connector View

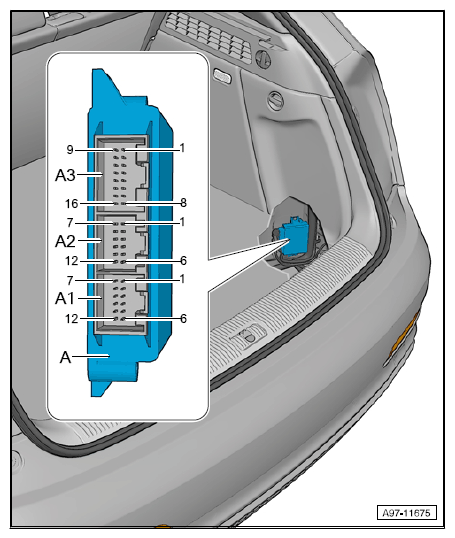

12-PIN CONNECTOR -T12F-/12-PIN CONNECTOR -T12E-/16-PIN CONNECTOR -T16B-

  1. A1  - 12-Pin Connector -T12F-, Black
  2. A2  - 12-Pin Connector -T12E-, Brown
  3. A3  - 16-Pin Connector -T16B-, Black
G12775409Courtesy of AUDI OF AMERICA, LLC
