Comp. LOC. Vehicle Rear Modules
›
Reducing Agent Heater Control Module J891
›

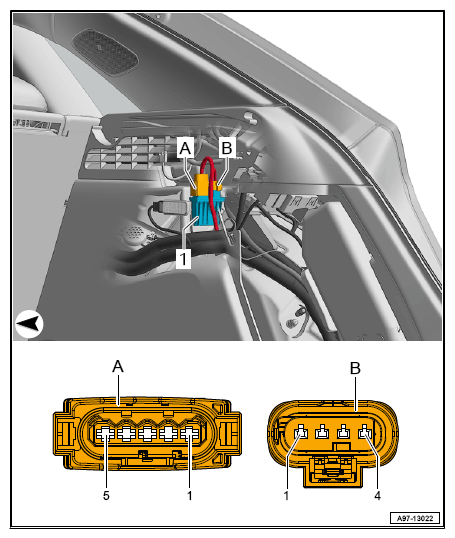

Reducing Agent Heater Control Module -J891-, Connector View
Reducing Agent Heater Control Module -J891-, Connector View
5-PIN CONNECTOR -T5P-/4-PIN CONNECTOR -T4BO-
5-Pin Connector -T5P-, Translucent
4-Pin Connector -T4Bo-, Black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
