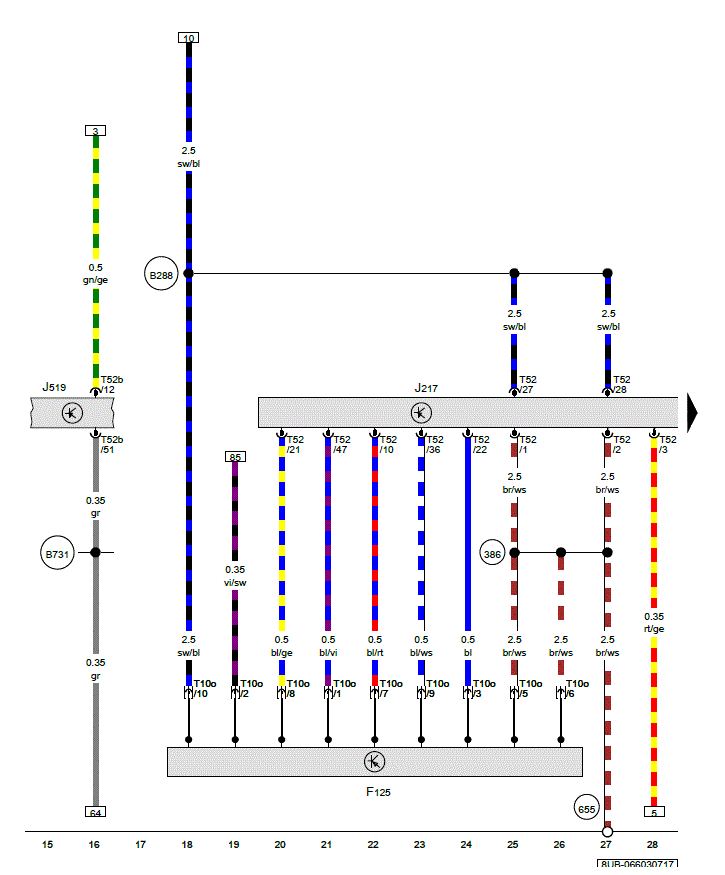

MULTIFUNCTION Transmission Range Switch, Transmission Control Module

Courtesy of AUDI OF AMERICA, LLC

F125  Multifunction transmission range switch

J217  Transmission control module

J519  Vehicle Electrical System Control Module

T10o  10-pin connector

T52  52-pin connector

T52b  52-Pin Connector, Naturally Cloudy

(386) Ground connection 21 (in main wiring harness)

(655) Ground connection on left headlamp

(B288) Positive connection 12 (15a) (in main wiring harness)

(B731) Connection 58s (in Main Wiring Harness) 1
