Component Location Overview - Navigation System

Courtesy of AUDI OF AMERICA, LLC

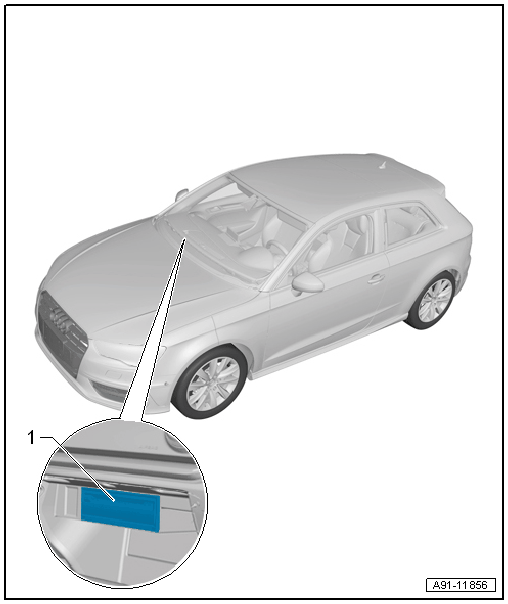

1. Information Electronics Control Module 1 -J794-
   • Connector Assignment, Navigation Standard (7UF), through MY 2016. Refer to NAVIGATION STANDARD (7UF), THROUGH MY 2016
   • Connector Assignment, MMI Navigation plus (7UG), through MY 2016. Refer to MMI NAVIGATION PLUS (7UG), THROUGH MY 2016
   • Connector Assignment, Navigation Standard (7UF), from MY 2017. Refer to NAVIGATION STANDARD (7UF), MMI NAVIGATION PLUS (7UG), FROM MY 2017
   • Connector Assignment, MMI Navigation plus (7UG), from MY 2017. Refer to NAVIGATION STANDARD (7UF), MMI NAVIGATION PLUS (7UG), FROM MY 2017
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
