Component Location Overview - Peripheral Camera

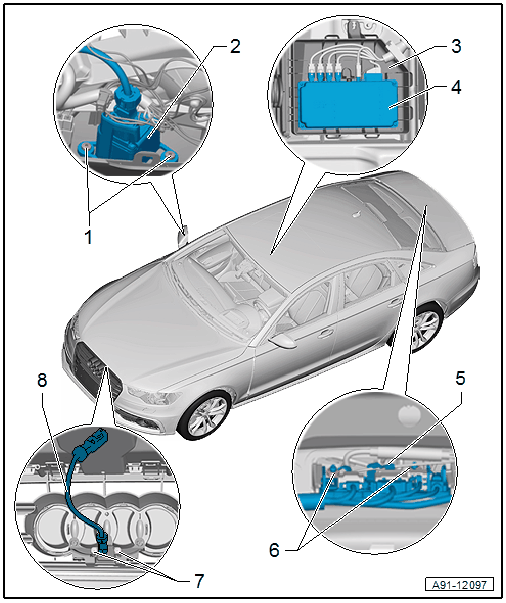

Fig 1: Component Location Overview Of Peripheral Camera

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 2 Nm
   • Quantity: 2
2. Right Peripheral Camera -R245- /Left Peripheral Camera -R244-
   • Removing and installing. Refer to OVERVIEW - EXTERIOR REARVIEW MIRROR .
   • Calibrating. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
3. E-Box
4. Peripheral Camera Control Module -J928-
   • Connector assignment. Refer to appropriate SYSTEM WIRING DIAGRAMS information.
   • Removing and installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
   • Calibrating. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
5. Rear Peripheral Camera -R246-
   • Sedan, removing and installing. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
   • Avant, removing and installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING, AVANT .
   • Calibrating. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
6. Nut
   • 3 Nm
   • Quantity: 2
7. Bolt
   • 3 Nm
   • Quantity: 2
8. Front Peripheral Camera -R243-
   • Removing and installing. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
   • Calibrating. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .

• Bumper cover end plate screws: 3 Nm
