Overview - Microphone Unit
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

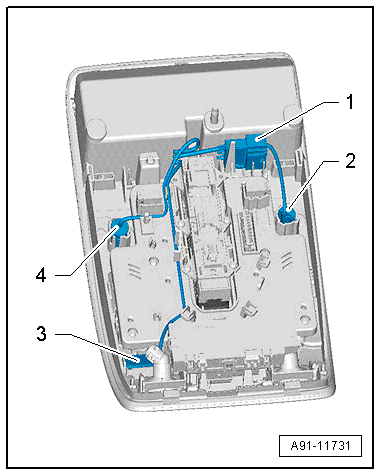

One microphone (Interior Microphone -R74-) is connected directly to the Digital Sound System Control Module -J525-. The other microphones are connected to the Information Electronics Control Module 1 -J794-.
- 6-Pin Connector -T6e-
- Microphone (blue) to Information Electronics Control Module 1 -J794-
- Microphone (black) to Digital Sound System Control Module -J525-
- Microphone (gray) to Information Electronics Control Module 1 -J794-
- Left Front Microphone -R140-, gray
- 6-Pin Connector -T6e-, Pin 1-2: Left Front Microphone -R140- (gray), Pin 3-4: Interior Microphone -R74- (black), Pin 5-6: Right Front Microphone -R141- (blue)
- Right Front Microphone -R141-, blue
- Interior Microphone -R74-, black
Microphone Unit in Front Roof Module -R164-, removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
