Engine Control Module (ECM) -J623-

Component Location

In Plenum Chamber

Pin Arrangements

G12778283Courtesy of AUDI OF AMERICA, LLC
  1. Engine Control Module (ECM) -J623-
  2. 94-Pin Connector -T94-, Black On Wiring Harness
  3. 60-Pin Connector -T60-, Black On Wiring Harness
G12777863Courtesy of AUDI OF AMERICA, LLC

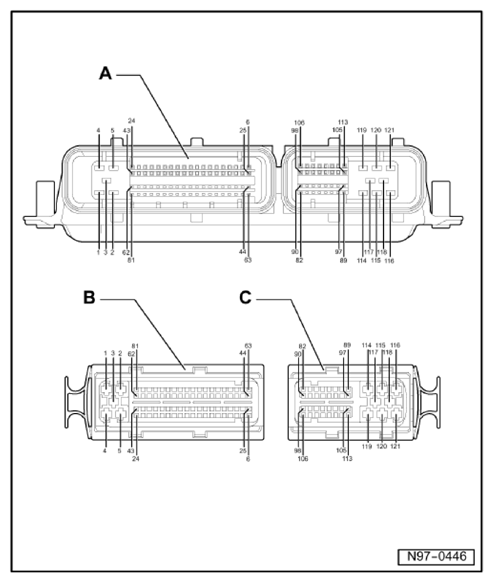

Pin Arrangements 3.2 L V6

  1. Engine Control Module (ECM) -J623-
  2. 81-Pin Connector -T81-, Black On Wiring Harness
  3. 40-Pin Connector -T40-, Black On Wiring Harness
G12778285Courtesy of AUDI OF AMERICA, LLC
