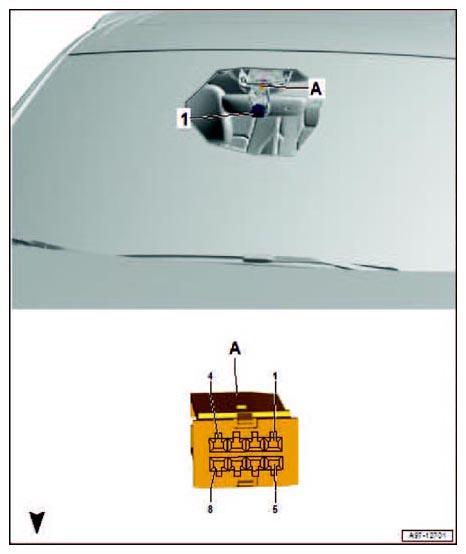

| 1 |
Terminal 15, from Fuse panel C -SC- |
| 2 |
Terminal 31, to 639 Ground Connection (on left A-pillar) |
| 3 |
Extended System CAN-Bus High, to B108 CAN-Bus Extended High Connection 1 (in main wiring harness) |
| 5 |
Mirror Dimming Signal Line, to B428 Mirror auto-dimming signal connection 2 (in main wiring harness) |
| 6 |
|
| 7 |
|
| 4 |
Mirror Dimming Signal Line, to B427 Mirror auto-dimming signal connection 1 (in main wiring harness) |
| 8 |
Extended System CAN-Bus Low, from B109 CAN-Bus Extended
Low Connection 1 (in main wiring harness) |
