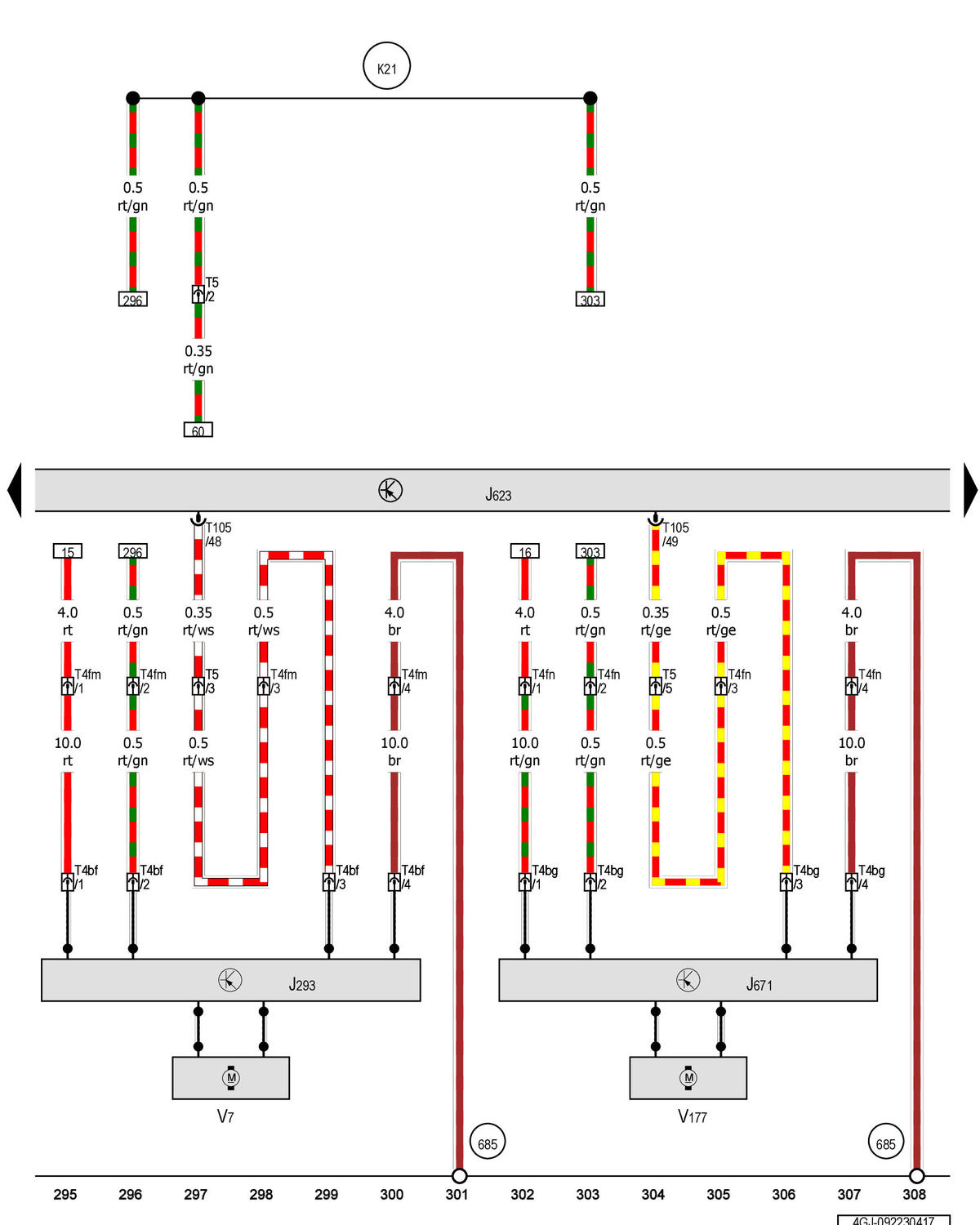

Wiring Diagram (Engine(S): CPNB - 2 Of 2)
›
Wiring Diagram
›
Radiator Fan Control Module, Engine Control Module, Radiator Fan Control Module 2
›
Notes
Radiator Fan Control Module, Engine Control Module, Radiator Fan Control Module 2: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
