Bevel Box: Removing

-- With the vehicle still standing on its wheels, loosen the right twelve-point bolt -arrow- a maximum of 90°, otherwise the wheel bearing will get damaged, refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Do not place vehicle on floor after loosening bolt.

-- Lift the vehicle, all four take-up points of lifting platform at same height.

NOTE:

To make it possible to rotate the driveshaft later so it can be loosened:

-- Move the selector lever into "N".

-- Turn off the ignition.

-- Remove the right front wheel.

-- Remove the noise insulation -1-, refer to NOISE INSULATION, REMOVING AND INSTALLING and OVERVIEW - NOISE INSULATION .

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- on the Oil Level Thermal Sensor -G266-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the bracket -2- for the Oil Level Thermal Sensor -G266- wire from the subframe.

-- If equipped: remove the nut -4- from the bracket for the Right Front Level Control Sensor -G289-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore items -1, 2 and 3-.

-- Remove the right drive axle, refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the nuts -1- and the right drive axle heat shield.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the heat shield -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Mark the position of the flexible disc and the bevel box output flange to each other for later use.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- connecting the drive axle flexible disc to the bevel box.

NOTE:

Counterhold the rear final drive to loosen and tighten the drive axle.

Courtesy of AUDI OF AMERICA, LLC

To loosen the "next" bolt, rotate the drive axle by turning the rear wheels.

-- Remove the bolts -arrows- from exhaust system bracket on the subframe.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and slide the clamping sleeve to the back.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a danger of causing damage to the decoupling element.

Do not bend the decoupling element in the front exhaust pipe more than 10°.

-- Tie up the front exhaust pipe.

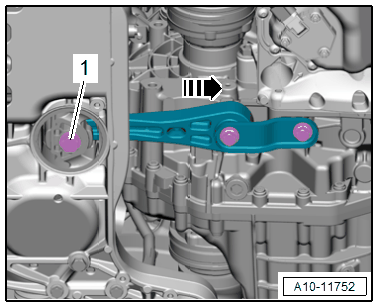

-- Remove the bolt -1- for the pendulum support, push the engine/transmission assembly forward -arrow- until the bolt can be installed.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the drive axle from the bevel box and support using a suitable piece of wood on the steering gear heat shield.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging sealing ring -arrow - in drive axle flange.

Press drive axle horizontally as far back and to the right side of the vehicle as possible.

NOTE:

If seal is damaged, drive axle must be replaced.

-- Remove bolts -1 to 3- and the transmission support.

-- Remove the transmission support nuts -1, 2 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the upper bolts -1- for securing the bevel box on the transmission.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Use a swivel joint -2- to remove the bolts.

-- Unbolt the bottom of the bevel box from the transmission -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Carefully press the bevel box off the transmission and remove it downward.
