Overview Selector Lever Handle

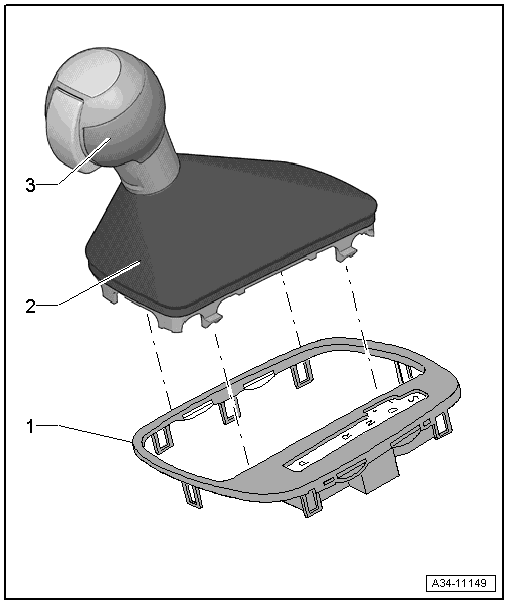

Fig 1: Selector Lever Handle Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Cover Frame with Selector Lever Transmission Range Position Display Unit -Y26-
   • Removing and Installing, refer to Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING .
2. Selector Lever Boot
   • Removing and installing: together with -item 3-  OVERVIEW SELECTOR LEVER HANDLE.
3. Selector Lever Handle
   • Removing and installing, refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
