Special Tools

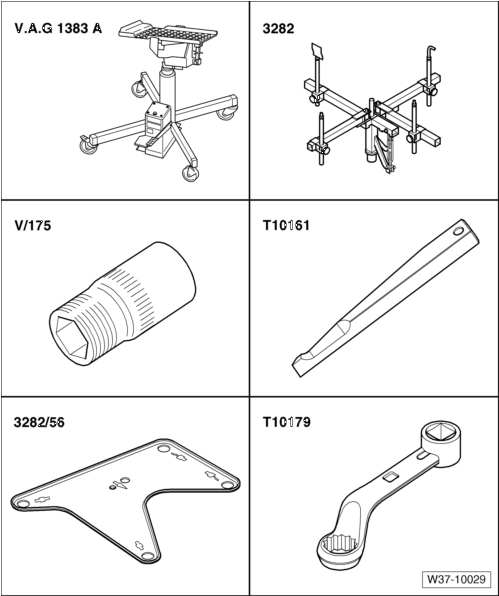

Special tools and workshop equipment required
- Engine and Gearbox Jack: VAS6931
- Transmission Support: 3282
- Socket - Sw15: V/175
- Drive Axle Wedge Tool: T10161
- Transmission Support - Mounting Plate 56: 3282/56
- Insert Tool - 18mm: T10179
Special tools and workshop equipment required
- Engine Support Bridge: 10-222A
- Engine Support Bridge - Special Hook (2 pc.): 10-222A/20
- Pry lever: 80-200
- Lifting Eyebolt: 3368
- : T40093/6 from the Engine Support - Supplement Kit: T40093A
- M10 collar nut or nut with washer
Special tools and workshop equipment required
- Torque Wrench 5-50Nm: VAG1331
- Used Oil Collection and Extraction Unit: SMN372500
- Vehicle Diagnostic Tester
- Shop Crane - Drip Tray: VAS6208
- Oil Filler: VAS6262A
- Oil Filler - Adapter 2: VAS6262/2
- Not illustrated: Brake Line Tool Kit - Pipe Cutter: VAS6056/2
Special tools and workshop equipment required
- Counterhold - Kit - Multiple Use: T10172
- Gauge - Multi Function Switch: T10173
- Seal Installer - Selector Shaft Oil Seal: T10174
- Puller - Crankshaft/Power Steering Seal: T20143/1
- Locking Button Removal Tool: T40203
- Engine And Transmission Holder: VAS6095
- Shop Crane: VAS6100
- Engine Bung Set: VAS6122
- Shop Crane - Drip Tray: VAS6208
- Oil Filler - Adapter 2: VAS6262/2
- Holding Fixture: VW540
- Engine/Gearbox Support Shackle (2 pc.): 10-222A/12
- Hose Clamps - Up To 25 mm: 3094
- Bolt: 3282/34
- Trim Removal Wedge: 3409
