Component Location Overview - Control Modules

The illustration shows LHD, RHD is a mirror image.

Courtesy of AUDI OF AMERICA, LLC

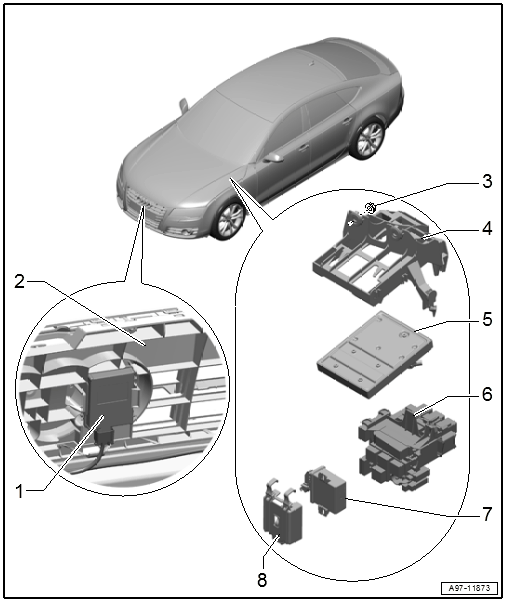

1. Garage Door Opener Control Module -J530-
   • Removing and Installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
2. Radiator Grille
3. Nut
   • 3 Nm
   • Quantity: 2
4. Mount
   • For the Vehicle Electrical System Control Module -J519- and relay panel
   • Removing and Installing. Refer to RELAY PANEL MOUNT, REMOVING AND INSTALLING, UNDER INSTRUMENT PANEL AND LEFT SIDE, Vehicle Electrical System Control Module -J519- .
5. Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
6. Relay Panel under Left Instrument Panel
7. Headlamp Range Control Module -J431-
8. Mount
   • For the Headlamp Range Control Module -J431-
