Overview - Data Bus On Board Diagnostic Interface

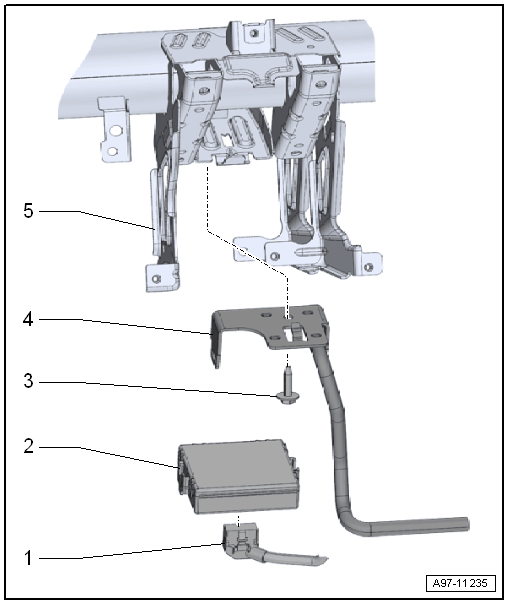

Fig 1: Data Bus On Board Diagnostic Interface Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Connector
   • For Data Bus On Board Diagnostic Interface -J533-
2. Data Bus On Board Diagnostic Interface -J533-
   • Removing and installing. Refer to Data Bus On Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
3. Bolt
   • Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL CROSSMEMBER .
4. Crash Bolster
   • Overview. Refer to OVERVIEW - INSTRUMENT PANEL CROSSMEMBER .
5. Instrument Panel Crossmember
