Component Location Overview - Peripheral Camera System

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

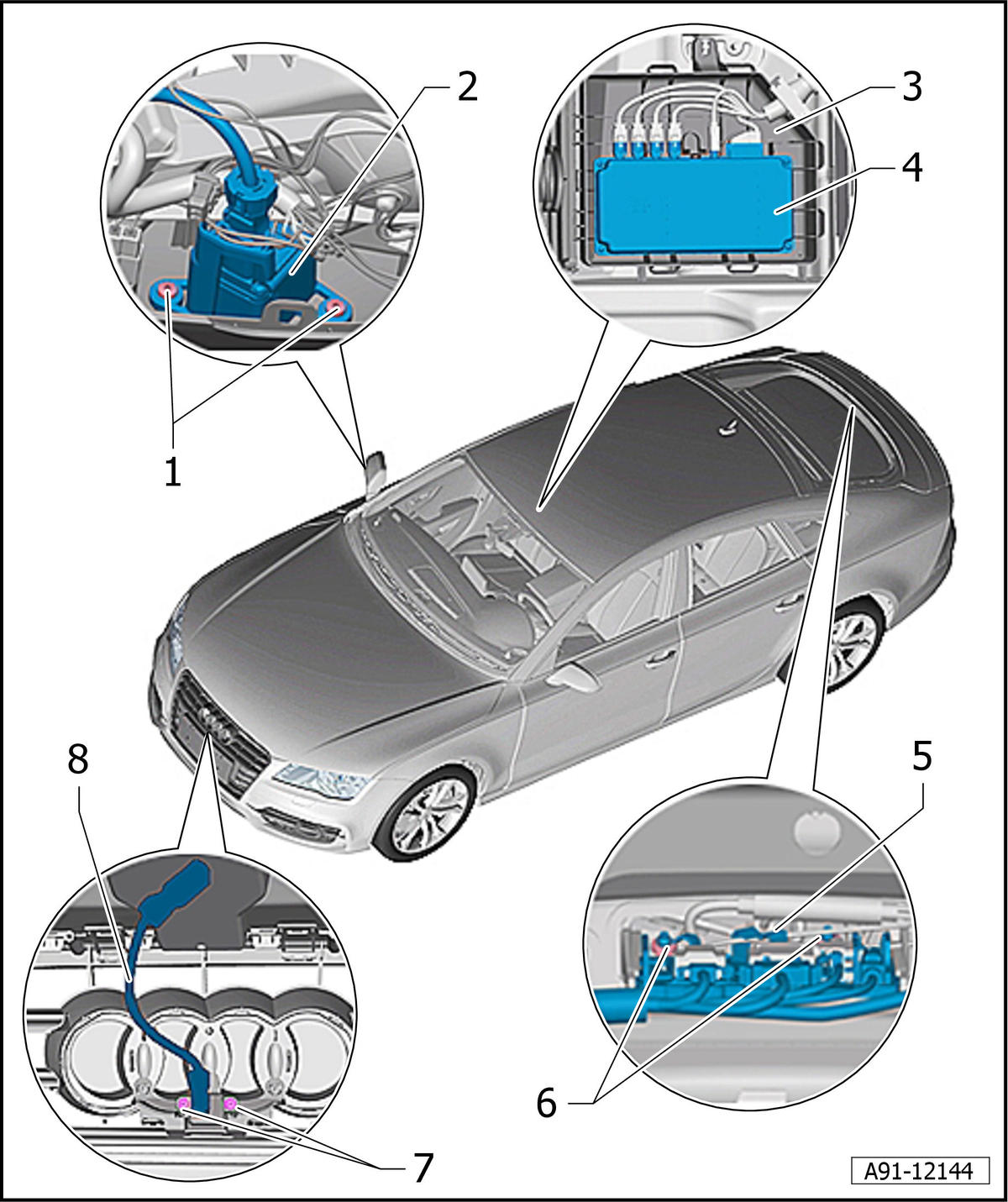

Fig 1: Component Location Overview Of Peripheral Camera System

Courtesy of AUDI OF AMERICA, LLC

Screw
- 2 Nm
- Quantity: 2
Right Peripheral Camera -R245- /Left Peripheral Camera -R244-
- Removing and installing. Refer to OVERVIEW - EXTERIOR REARVIEW MIRROR .
- Calibrating. Refer to LEFT PERIPHERAL CAMERA -R244- /RIGHT PERIPHERAL CAMERA -R245-, CALIBRATING .
E-Box
Peripheral Camera Control Module -J928-
- Connector assignment Peripheral Camera Control Module -J928- CONNECTOR ASSIGNMENT .
- Removing and installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA SYSTEM, CALIBRATING .
Rear Peripheral Camera -R246-
- Removing and installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Calibrating. Refer to Rear Peripheral Camera -R246- CALIBRATING .
Nut
- 3 Nm
- Quantity: 2
Screw
- 3 Nm
- Quantity: 2
Front Peripheral Camera -R243-
- Removing and installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
- Calibrating. Refer to Front Peripheral Camera -R243- CALIBRATING .

No illustration

Bumper cover end plate screws: 3 Nm
