Rearview Camera System Control Module -J772-, REMOVING AND INSTALLING: Notes

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The Rearview Camera System Control Module -J772- -1- is located behind the right luggage compartment trim panel.

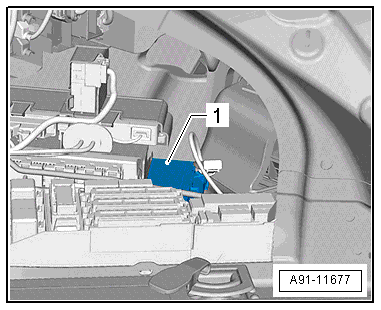

Fig 1: Identifying Rearview Camera System Control Module -J772-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If replacing the control module, select the "Replace Control Module" function on the Vehicle Diagnostic Tester.
