Home › Audi › 2016 › S8 Base › Repair and Diagnosis (Single Page) › Quick Lookups › Wiring Diagrams › Wiring Diagram [CEUA,CEUE,CGTA,CTFA,CTGA,CTGD,CTGF,DDTA] › Wiring Diagram(S) › Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Engine Control Module › Notes

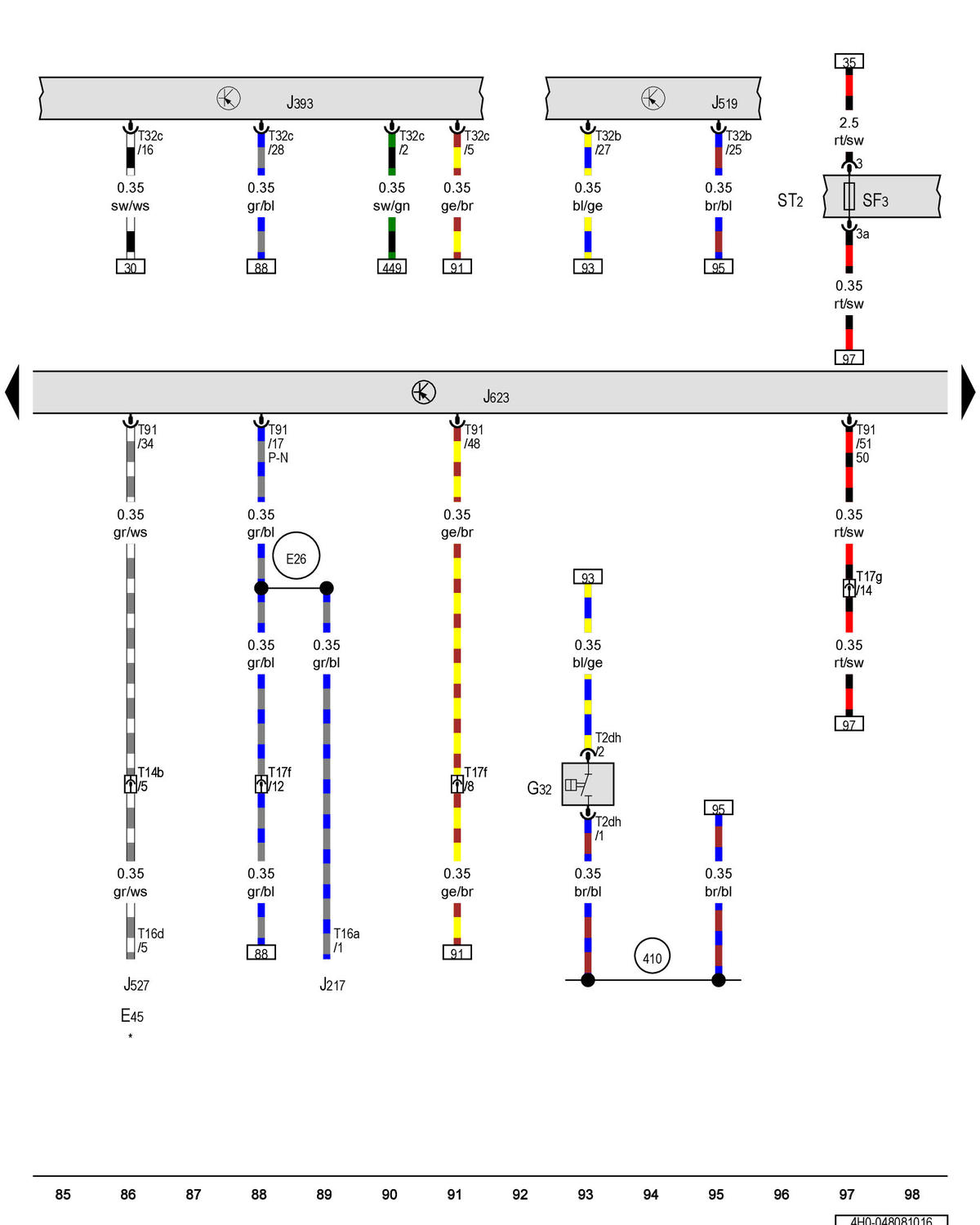

Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Engine Control Module: Notes

GWW4H0-048081016Courtesy of AUDI OF AMERICA, LLC
