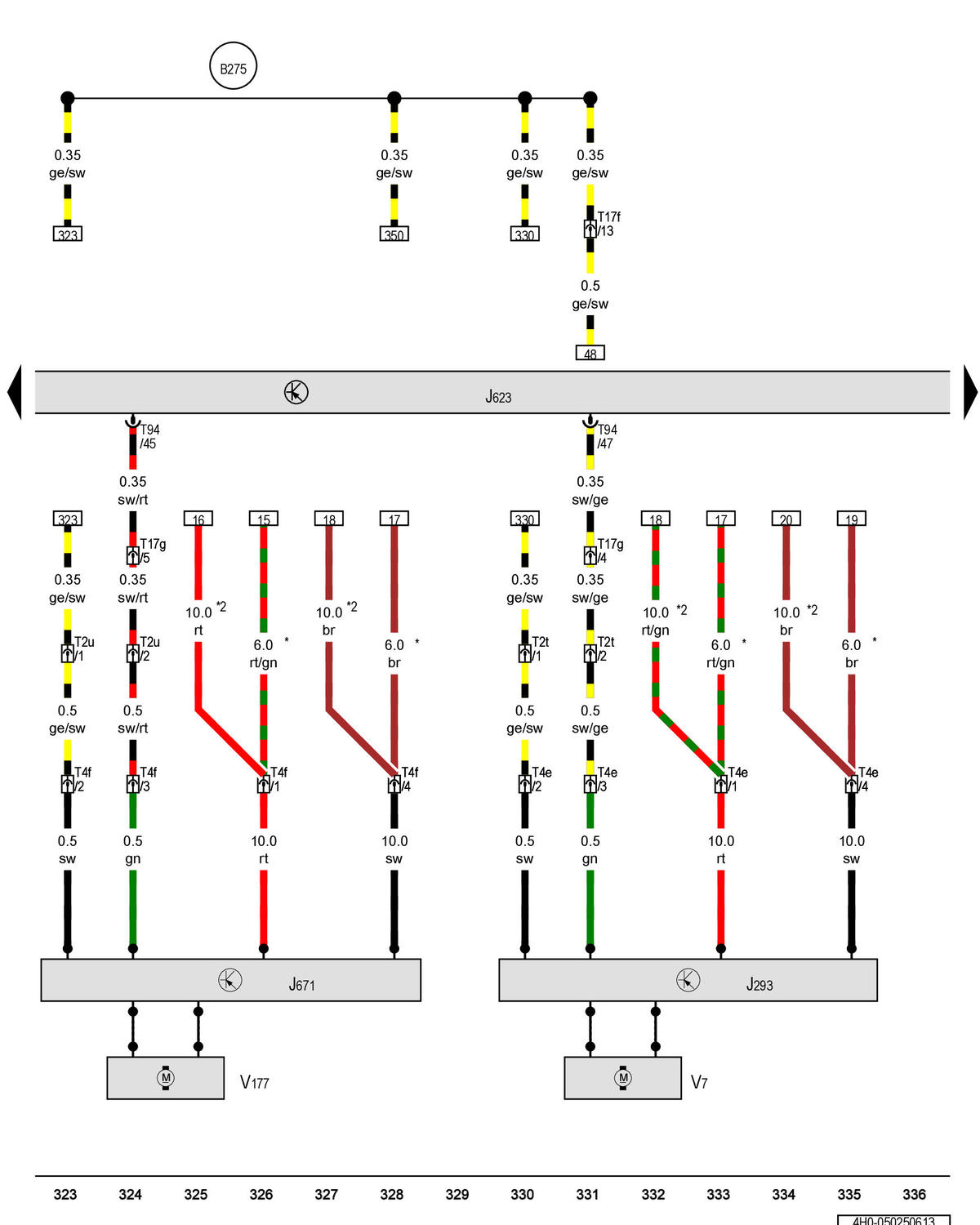

Coolant Fan Control Module, Engine Control Module, Coolant Fan Control Module 2: Notes

GWW4H0-050250613

Courtesy of AUDI OF AMERICA, LLC
