Overview - Window Regulator

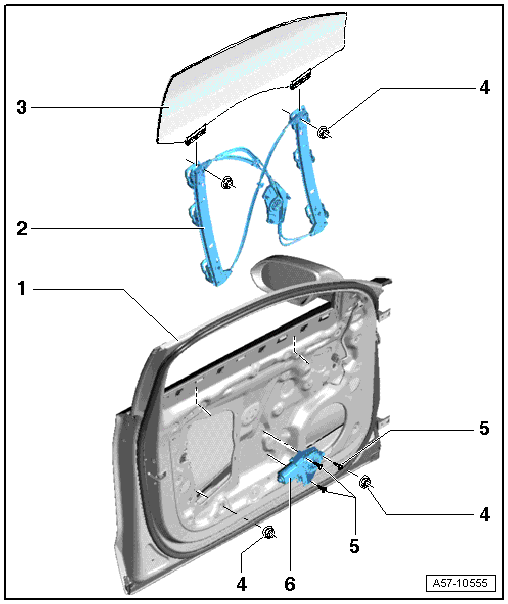

Fig 1: Overview Of Window Regulator

GWWA57-10555

Courtesy of AUDI OF AMERICA, LLC

Door
Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Door Window
- Removing and installing. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
Nut
- 6 Nm
Bolt
- 3.5 Nm
- Quantity: 3
Window Regulator Motor
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
