Overview - VALEO Generator From 2001

NOTE:

The generators were implemented as a running change.

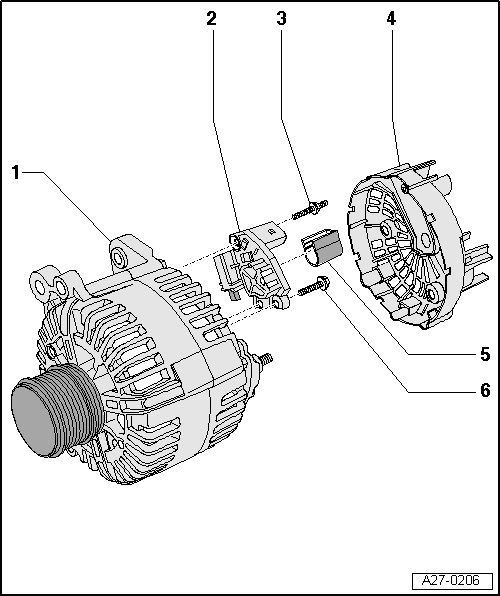

Fig 1: Exploded View Of Valeo Generator From 2001

GWWA27-0206

Courtesy of AUDI OF AMERICA, LLC

Generator
Voltage Regulator
- Removing and installing: to 2007. Refer to VOLTAGE REGULATOR, VALEO GENERATOR FROM 2001, REMOVING AND INSTALLING , after 2007 VOLTAGE REGULATOR, REMOVING AND INSTALLING, VALEO GENERATOR FROM 2007
- Check the carbon brushes: to 2007. Refer to CARBON BRUSHES, VALEO GENERATOR FROM 2001, CHECKING , after 2007 CARBON BRUSHES, CHECKING, VALEO GENERATOR FROM 2007
Bolt
- 2 Nm
Cover
Protective Cap
Bolt
- 2 Nm
