SYNC Module [APIM] to Front Display Interface Module (FDIM) Cable

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the Front Display Interface Module (FDIM). Refer to, Front Display Interface Module (FDIM) .

2.

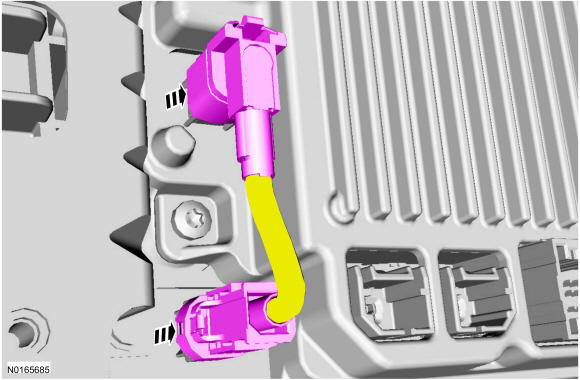

Disconnect the electrical connectors and remove the Accessory Protocol Interface Module (APIM) to FDIM cable.

GFD136960

Courtesy of FORD MOTOR COMPANY

3.

To install, reverse the removal procedure.
