Trailer Brake Control (TBC) Module: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

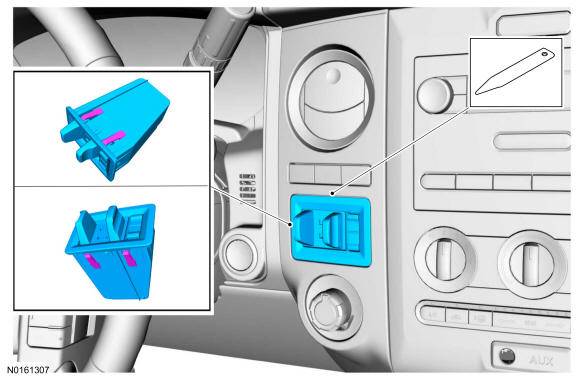

Using a plastic trim tool, release the Trailer Brake Control (TBC) module from the instrument panel trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

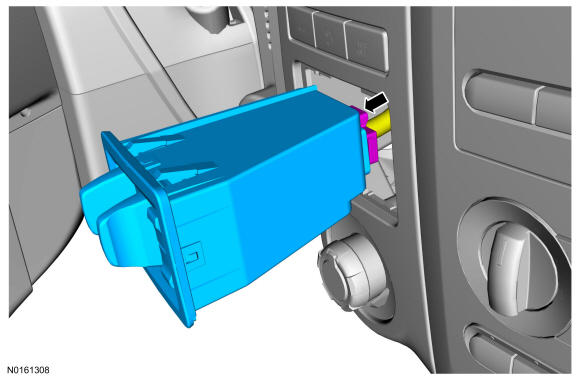

Disconnect the electrical connector and remove the Trailer Brake Control (TBC) module.
 Courtesy of FORD MOTOR COMPANY
|
