Component Location
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Expedition or Navigator shown, Expedition EL or Navigator L similar

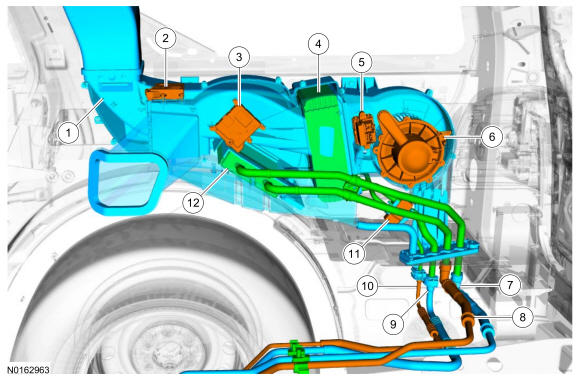

| 1. | Auxiliary Climate Control Assembly |
|---|---|
| 2. | Auxiliary Mode Door Actuator |
| 3. | Auxiliary Temperature Blend Door Actuator |
| 4. | Auxiliary Evaporator Core |
| 5. | Auxiliary Blower Motor Speed Control |
| 6. | Auxiliary Blower Motor |
| 7. | Auxiliary Heater Outlet Line |
| 8. | Auxiliary Heater Inlet Line |
| 9. | Auxiliary Evaporator Outlet Line |
| 10. | Auxiliary Evaporator Inlet Line |
| 11. | Thermostatic Expansion Valve (TXV) |
| 12. | Auxiliary Heater Core |

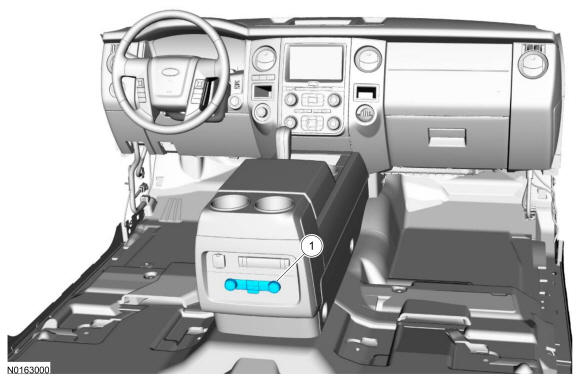

| 1. | Auxiliary Climate Control Assembly |
|---|---|

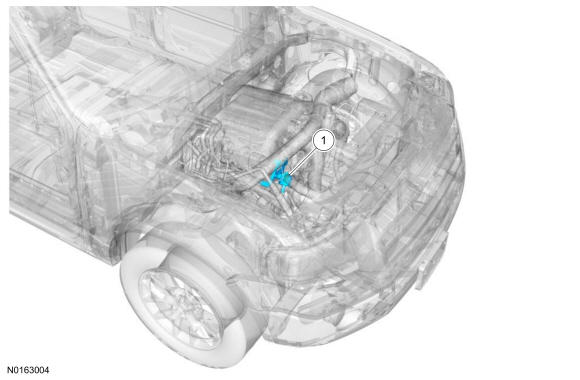

| 1. | Auxiliary Coolant Flow Pump |
|---|---|
