Removal And Installation: Register: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Fabricate a removal tool from a 3.175 mm (0.12 in) diameter rod.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

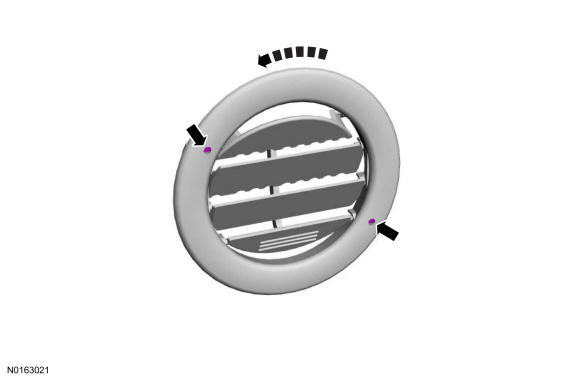

Rotate the register with the removal tool to align the retaining ears with the clearance openings and remove the register.
 Courtesy of FORD MOTOR COMPANY
|
