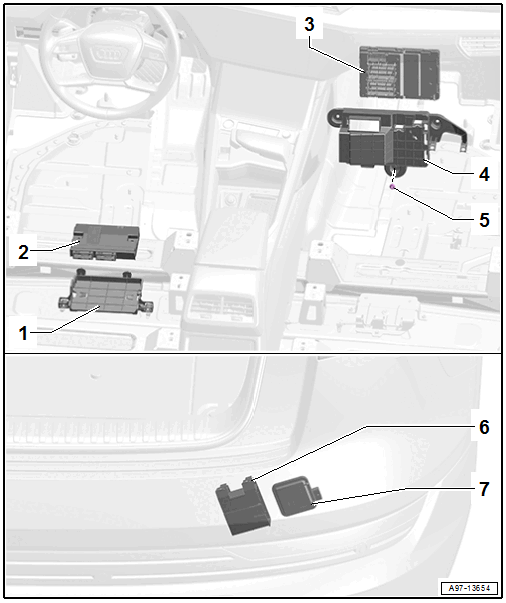

Component Location Overview - Control Modules
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Mount
- For the Data Bus on Board Diagnostic Interface -J533-
- Data Bus on Board Diagnostic Interface -J533-
- Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
- Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Mount
- For the Vehicle Electrical System Control Module -J519-
- Nut
- 3 Nm
- Quantity: 3
- Mount
- For the Garage Door Opener Control Module -J530-
- Garage Door Opener Control Module -J530-
- Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
